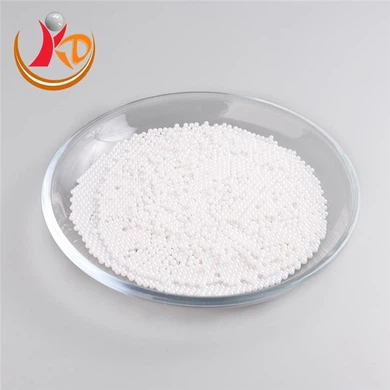

Yttria Stabilized Zirconia Media for Screen Printing Inks
Product Details
Product Introduction:
Kingda Y-TZP consists of yttrium stabilized zirconium oxide. Yttrium Stabilized Zirconia (Y-TZP) is the strongest ceramic material we offer. Y-TZP is a purely tetragonal phase, fine grain material.
Chemical Composition:
Composition | ZrO2 | Y2O3 | Other |
Content % | 94.8±0.2 | 5.1±0.1 | 0.1% |
Physical Properties:
Specific Gravity g/cm3 | Bulk Density g/cm3 | Hardness Hv | Fracture Toughness MPam1-2 | Crushing Load KN (Φ2.0mm) | Grain size um | Wear loss (%) | Sphericity (%) |
≥6.02 | ≥ 3.70 | ≥1250 | 9 | ≥20 | ≤0.5 | ≤0.08 | ≥98 |

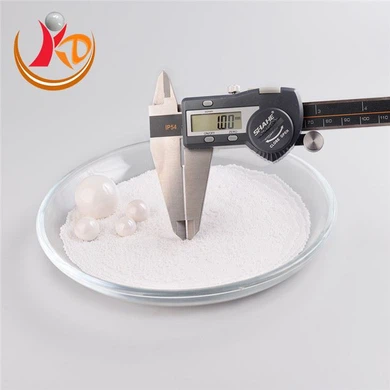

Ball Sizes:
Size (mm) | Size (mm) | Size (mm) | Size (mm) | Size (mm) |
Φ0.08-0.12 | Φ0.12-0.18 | Φ0.18-0.22 | Φ0.22-0.28 | Φ0.28-0.35 |
Φ0.3-0.4 | Φ0.4-0.6 | Φ0.6-0.8 | Φ0.8-1.0 | Φ1.0-1.2 |
Φ1.2-1.4 | Φ1.4-1.6 | Φ1.6-1.8 | Φ1.8-2.0 | 2.0-2.2 |
Φ2.2-2.4 | Φ2.4-2.6 | Φ2.6-2.8 | Φ2.8-3.0 | Φ3.0-3.2 |
Φ3.2-3.5 | Φ4 | Φ5 | Φ6 | Φ7 |
Φ8 | Φ10 | Φ12 | Φ15 | Φ17 |
Φ20 | Φ25 | Φ30 | Φ40 | Φ50 |
Applications:
It is widely used for grinding, dispersing and polishing as following: inkjets inks, electronic slurries, raw material of battery, screen printing inks, coating, painting, pigment, ceramic and cosmetic, jewelry and other nanoparticles products.
Production Details:
Display Cabinet:
Main advantage
2.SGS, ROHS certificate,Strict quality control system ISO 9001.
3.Professional,Sincerity,Concentration,Honesty,Constant striving for improvement,Mutual Glory.
4.High Quality raw material imported from Australian.
5. Quick-delivery, safe packing
Features:
A. Long lifespan: 30 times longer life than glass beads, 6 times than zirconium silicate beads.
B.High efficiency: around 6 times higher than glass beads; 2 times than zirconium silicate beads.
C. Excellent wear resistance and fracture toughness is especially suited for high-solid-phase high viscosity, high hardness of thepaste for grinding and dispersing of pure; good match at the same
time high input energy and the high shear machine sanding.
FAQ:
| What is grinding media for ball mill? | The grinding media are the balls, which may be made of steel (chrome steel), stainless steel, ceramic, or rubber. The inner surface of the cylindrical shell is usually lined with an abrasion-resistant material such as manganese steel or rubber lining. Less wear takes place in rubber lined mills.Please come in and have a look at our best sellers. |
| Why is yttria used to stabilize zirconia? | Yttria-stabilized zirconia (YSZ) is currently the mostly commonly used electrolyte due to its acceptable performance, pure oxygen ion conductivity, and suitable chemical stability.We know the best offer will be accepted. Please contact us here! |
| What does yttrium do to zirconia? | Substituting some of the zirconium ions for yttrium stabilizes the cubic phase of the material, which is normally only formed at very high temperatures (>2690 °C) over a wide temperature range. This allows sintered zirconia products to be created, and also makes the material a conductor of O2- ions.We have an exclusive offer for our members. |
