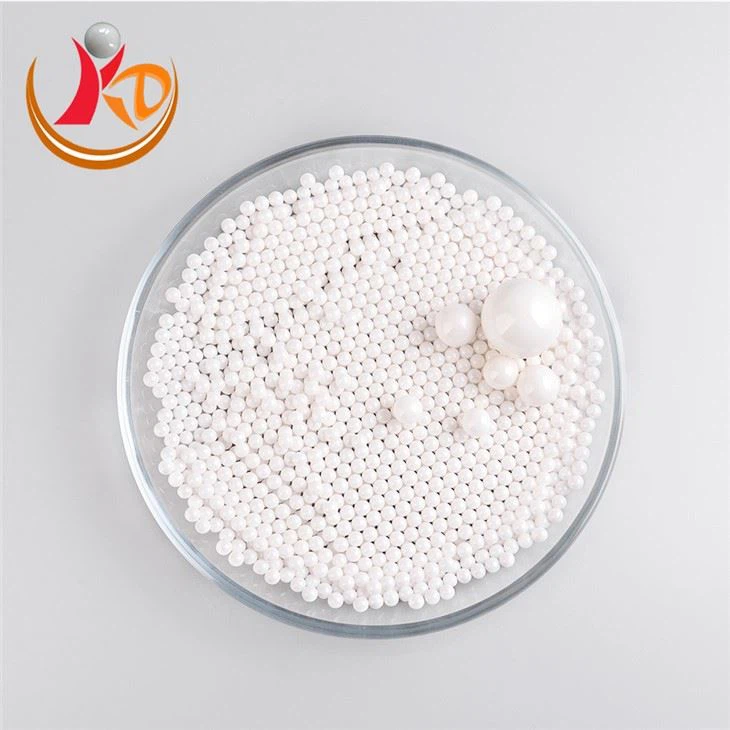

0.1-50mm ceramic ball mill media
Product Details
Product Introduction:
0.1-50mm ceramic ball mill media by special moulding and sintering technology, Kingda Y-TZP consists of yttrium stabilized zirconium oxide. Yttrium Stabilized Zirconia (Y-TZP) is the strongest ceramic material we offer. Y-TZP is a purely tetragonal phase, fine grain material. This material offers the highest flexural strength of all Zirconia based materials. 0.1-50mm ceramic ball mill media gives significant advantages in the fields of resistance to wear and absence of contamination.
0.1-50mm Ceramic Ball Mill Media for Ball Mill made in China
Chemical Composition: | ≥ ZrO2: 94.5% |
≥ Y2O3: 5.0% | |
| Specific Gravity: | ≥ 6.02g/cm3 |
Bulk Gravity: | 3.7g/cm3 |
Flexibility factor: | 8.0Mpa.m1/2 |
Hardness(Mohs) | 9 |
Crushing strength: | 150kgf(2mm) |
Wear value: | < 0.01% |
Cylinder size (mm) : 7*7, 10*10, 12.7*12.7, 15*15
Chemical Composition:
Composition | ZrO2 | Y2O3 | Other |
Content % | 94.8±0.2 | 5.1±0.1 | 0.1% |
Physical Properties:
Specific Gravity g/cm3 | Bulk Density g/cm3 | Hardness Hv | Fracture Toughness MPam1-2 | Crushing Load KN (Φ2.0mm) | Grain size um | Wear loss (%) | Sphericity (%) |
≥6.02 | ≥ 3.70 | ≥1250 | 9 | ≥20 | ≤0.5 | ≤0.08 | ≥98 |
Ball Sizes:
Size (mm) | Size (mm) | Size (mm) | Size (mm) | Size (mm) |
Φ0.08-0.12 | Φ0.12-0.18 | Φ0.18-0.22 | Φ0.22-0.28 | Φ0.28-0.35 |
Φ0.3-0.4 | Φ0.4-0.6 | Φ0.6-0.8 | Φ0.8-1.0 | Φ1.0-1.2 |
Φ1.2-1.4 | Φ1.4-1.6 | Φ1.6-1.8 | Φ1.8-2.0 | 2.0-2.2 |
Φ2.2-2.4 | Φ2.4-2.6 | Φ2.6-2.8 | Φ2.8-3.0 | Φ3.0-3.2 |
Φ3.2-3.5 | Φ4 | Φ5 | Φ6 | Φ7 |
Φ8 | Φ10 | Φ12 | Φ15 | Φ17 |
Φ20 | Φ25 | Φ30 | Φ40 | Φ50 |
Features:
1. High density, high grinding efficiency, high hardness;
2. Compact Tetragonal Zirconia Polycrystalline (Y-TZP) to give the beads outstanding anti-corrosion and wear resistance;
3. Smooth and polished working surface, perfect roundness ±0.02mm narrow size distribution;
4. Homogenous structure at high hardness.
Applications:
0.1-50mm ceramic ball mill media widely used for grinding, dispersing and polishing as following: inkjets inks, electronic slurries, raw material of battery, screen printing inks, coating, painting, pigment, ceramic and cosmetic, jewelry and other nanoparticles products.

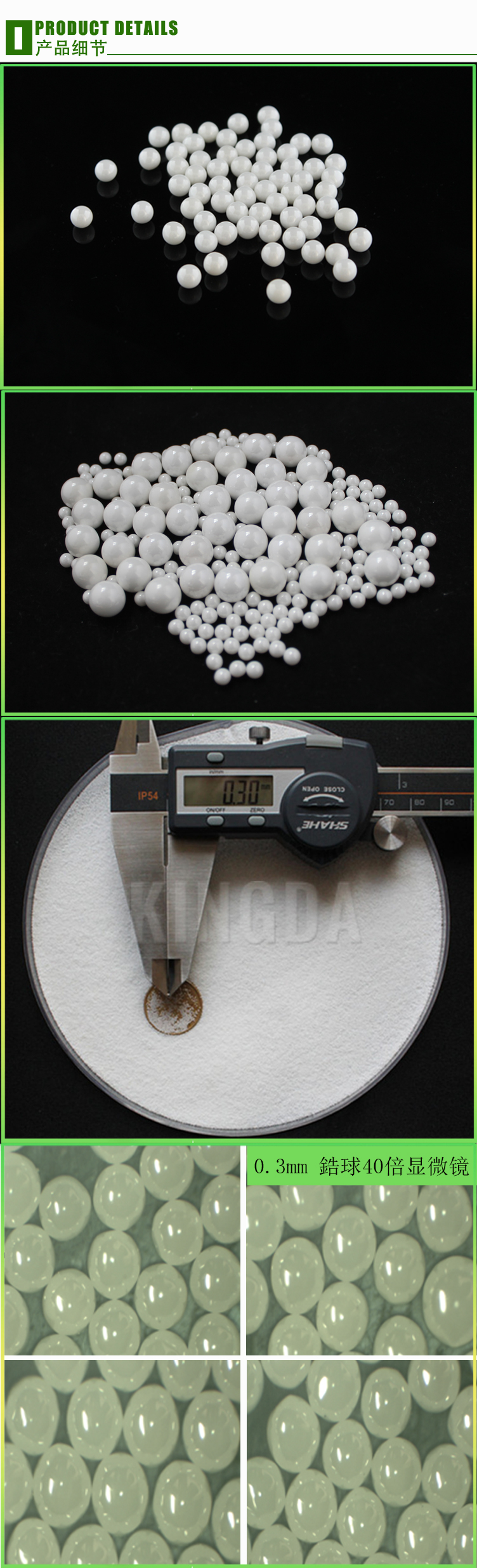

Production Details:
Deliver, Shipping and Serving:
Quantity (Kilograms) | 1 - 100 | 101 - 500 | >500 |
Est. Time (days) | 3 | 7 | To be negotiated |
FAQ
1. What products does your company supply?
A: We can supply 0.1-50mm ceramic ball mill media,95 zirconia bead, cerium stabilized zirconia bead, zirconium silicate bead, 92% high alumina ball, agate ball, zirconia toughened alumina beads, etc.
2. Q: What is the composition of yttria Stabilised zirconia?
A: The mostly used composition of YSZ contains 9.5 mol% yttria, which stabilizes the cubic phase of zirconia (C-YSZ). Density functional theory (DFT) calculations on low index C-YSZ surfaces predict that the non-polar, oxygen terminated surface is the most stable one. More details contact KINGDA ceramic.
3. Q: Can you provide free samples?
A: Yes, the buyers just afford the shipping cost.
4. Q: What is your payment term?
A: T/T 30% Deposit, balance against copy of B/L. L/C at sight, Western Union, pay pal, Visa, etc.
