Yttria Stabilized Zirconia Jar

YSZ (Yttria Stabilized Zirconia) grinding jar and bead have high density, high mechanical strength, high chemical stability, low thermal expansion factor and high abrasion resistance.

Product Details

Product Introduction:

YSZ (Yttria Stabilized Zirconia) grinding jar and bead have high density, high mechanical strength, high chemical stability, low thermal expansion factor and high abrasion resistance. It is the most durable and reliable media for ball milling and attrition milling of ceramic material. It also provides high grinding efficiency, low noise and prolonged life to materials with no contamination.

Physical Parameters:

General specifications
Main Materials	Zirconium Oxide -ZrO₂
Chemical composition
Element	Share %
ZrO₂	≥94.5
Y₂O₃	5.15
TiO₂	0.0018
P	< 0.035
SiO₂	0.007
Fe₂O₃	0.0009
S	< 0.03
N	< 0.25

Volume of Jar	Inner Diameter (mm)	External Diameter (mm)	Inner Depth (mm)	Height of without lid (mm)	Total Height (mm)	Weight (g)
50ml	38	55	52	60	67	610
100ml	50	65	58	66	75	835
250ml	74	92	70	78	88	1760
500ml	84	100	100	108	118	2300
1L	108	128	128	138	150	4780
2L	138	158	140	150	162	6750
3L	138	158	198	208	220	8400
Remarks: 1. Size deviation within ±2mm; 2. Weight deviation within ±0.2KG; 3. Customized jar is acceptable.

Package Service:

Yttria stabilized zirconia jars are carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.

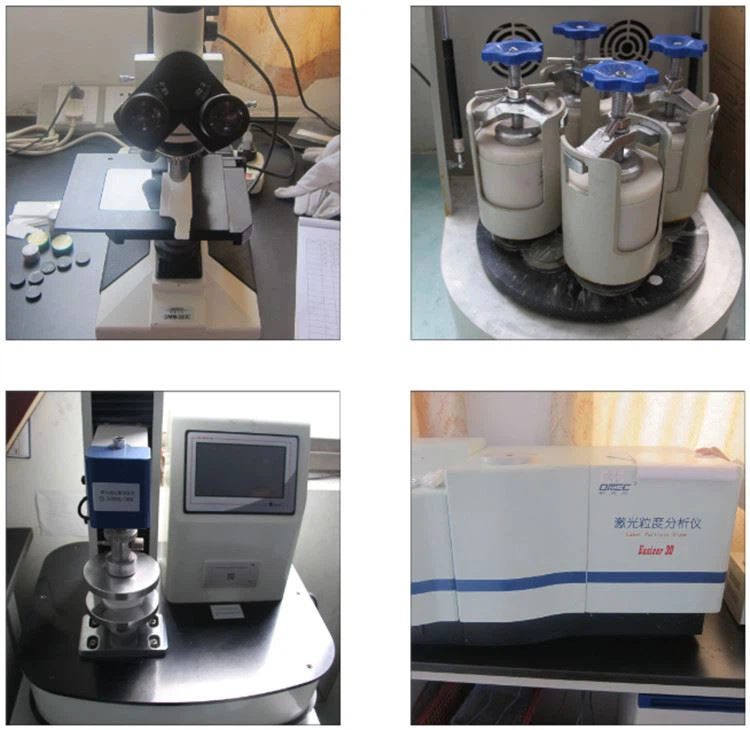

Production Details:
