Agate Ball Mill Jar

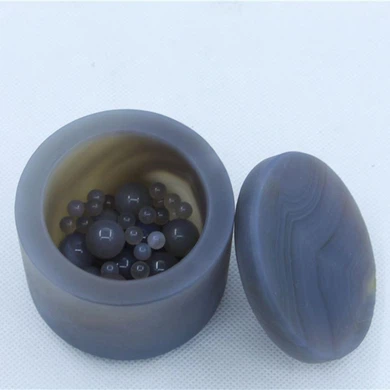

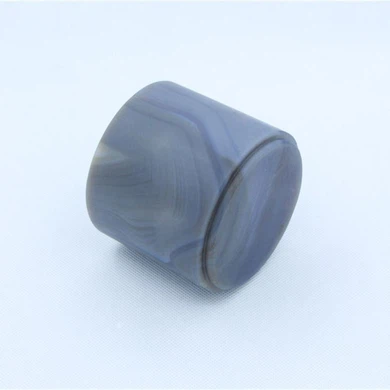

High purity natural Brazilian agate (99.92% SiO2) ball mill jars. Resistant to acids (except HF) and solvent, these jars are used whenever small quantity of samples need to be grinded without contamination. Each jar set includes grinding jar, lid, rubber sealing gasket and mixed agate milling balls.

Product Details

Product Introduction:

Agate Ball Mill Jar,High purity natural Brazilian agate (99.92% SiO₂) ball mill jars. Resistant to acids (except HF) and solvent, these jars are used whenever small quantity of samples need to be grinded without contamination. Each jar set includes grinding jar, lid, rubber sealing gasket and mixed agate milling balls.

Specification

Material:	Natural agate
Density:	2.65 g/cm³
Hardness:	7.2 -7.5 Mohs'
Volume:	50 - 2000 mL
Colour:	Natural agate color
Suitable for:	Soft to medium-hard samples
Attachments:	Lid, silicon sealing gasket
Applications:	Grinding / mixing / ball milling
Comments:	• Contamination free for samples • Do not heat • Can be customized for various ball milling equipments, such as Retsch series, ect.

Parameter of Agate Ball Mill Jar
Volume of Jar	Outside Diameter (mm)	Inner Diameter (mm)	Inner Depth (mm)	Height of Not Containing Cover (mm)	Total Height (mm)	Weight (KG)
50ml	65	45	37	49	58	0.36
100ml	75	50	52	62	70	0.56
150ml	90	62	55	70	80	0.93
250ml	93	73	70	80	90	0.84
300ml	102	79	71	81	95	1.18
400ml	106	80	80	93	103	1.38
500ml	104	86	90	100	110	1.31
1L	133	107	114	126	140	2.54
2L	156	130	155	170	185	4.43
Remarks: 1. Size deviation within ±2mm; 2. Packaged 1mm stainless steel outside as request; 3. The above weight is for A grade agate jars, deviation within ±0.2Kg.
