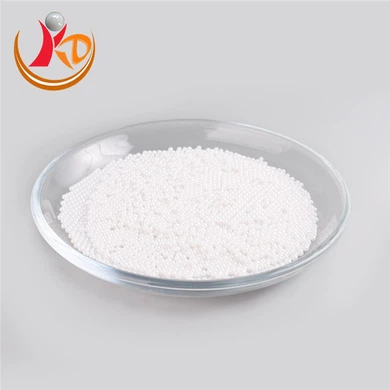

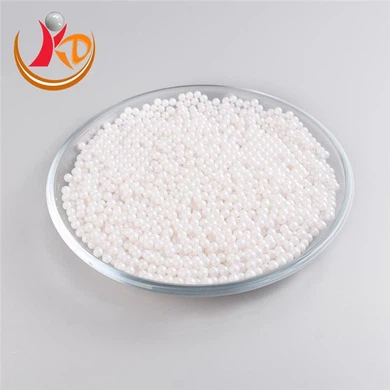

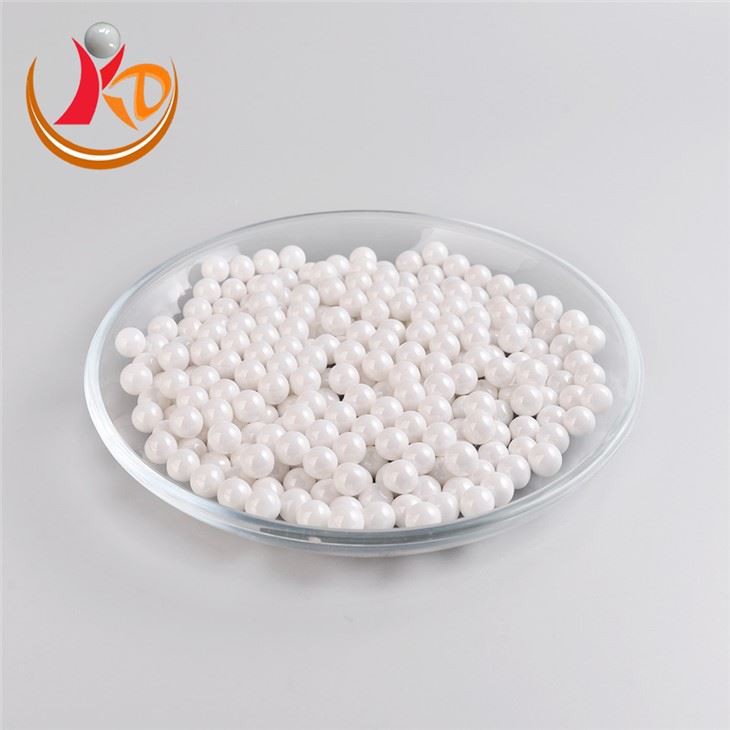

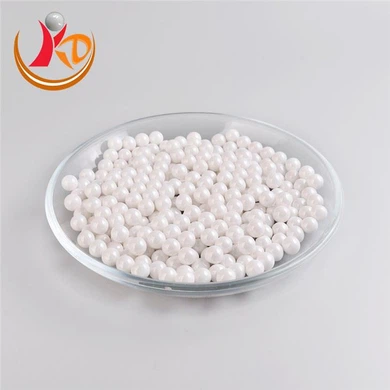

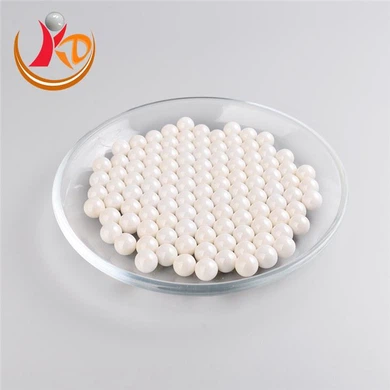

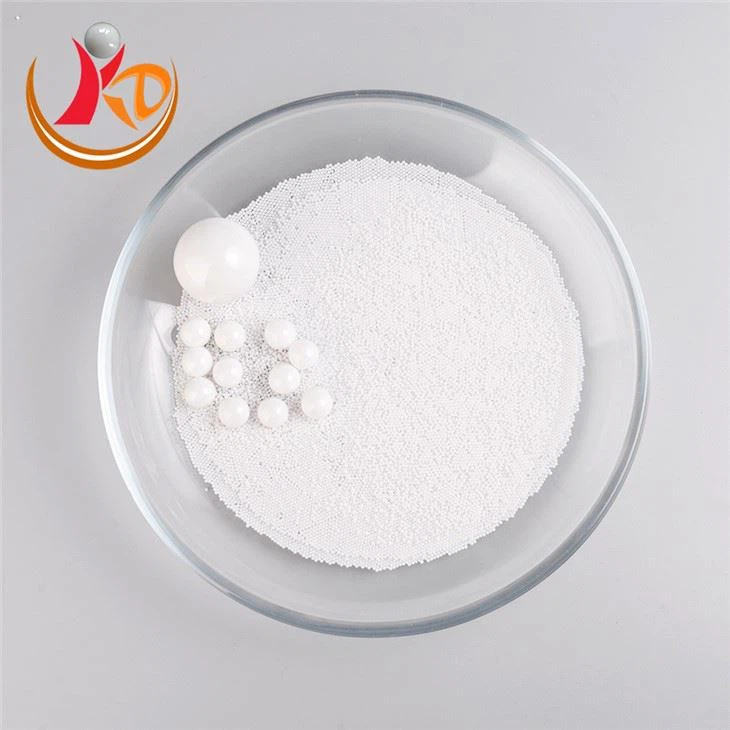

yttrium zirconia Ceramic beeds

Name: yttrium zirconia Ceramic beeds
Brand: Kingda
SKU: 171357703

With the extremely low wear loss, high impact resistance, Kingda zirconia ball is used as high grade grinding media for super fine grinding, it can be used in fast ball mill, jet mill in non-metallic material ultra-fine grinding.

Product Details

Product Introduction:

With the extremely low wear loss, high impact resistance, Kingda zirconia ball is used as high grade grinding media for super fine grinding, it can be used in the fast ball mill, jet mill in non-metallic material ultra-fine grinding.

Specification:

Density	g/cm³	6.00-6.06
Hardness	HV, Kgf/mm²	＞1250
Hardness	Mohs	9
Packing density	g/cm³	3.6-3.8
Water Absorption	%	0
Bending Strength	MPa	1200
Fracture Toughness	MPa.m 1/2	7
Size Available	mm	0.1-0.8 (any size breakdown)
Chemical composition
ZrO₂	%	>94.5
Y₂O₃+others	%	>5

Ball Sizes:

Size (mm)	Size (mm)	Size (mm)	Size (mm)	Size (mm)
Φ0.08-0.12	Φ0.12-0.18	Φ0.18-0.22	Φ0.22-0.28	Φ0.28-0.35
Φ0.3-0.4	Φ0.4-0.6	Φ0.6-0.8	Φ0.8-1.0	Φ1.0-1.2
Φ1.2-1.4	Φ1.4-1.6	Φ1.6-1.8	Φ1.8-2.0	2.0-2.2
Φ2.2-2.4	Φ2.4-2.6	Φ2.6-2.8	Φ2.8-3.0	Φ3.0-3.2
Φ3.2-3.5	Φ4	Φ5	Φ6	Φ7
Φ8	Φ10	Φ12	Φ15	Φ17
Φ20.	Φ25	Φ30	Φ40	Φ50

Advantages:

1. Compared with the traditional other ceramic grinding media, the YTZ zirconia ball has high density, hardness, which provide it higher milling performance than the traditional grinding medium.

2. The highest operating time is achievable.

3. High-wearing zirconia grinding medium can protect materials from pollution and guard against chemical corrosion to shorten the useful time of the grinding medium.

Applications:

Colour and Paint Industry: - grinding and dispersion of coating and paint systems

Ceramic Industry - grinding and processing of electric ceramics

Plant Protection: - dispersion of fungicides,herbicides,insecticides

Cosmetics: - grinding of pigments and solids for lipsticks, creams

Pharmaceutics: - nano grinding for the production of active substances.

Battery raw materials: - ultra fine grinding and dispersion of battery raw materials

for Cathode and Anode materials
