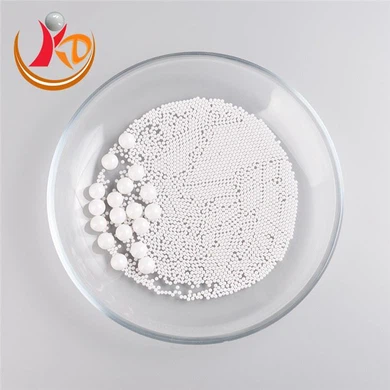

Ball Mill Media for Nanoparticles Products.
Product Details
Product Introduction:
Kingda Y-TZP Ball Mill Media for Nanoparticles Products consists of yttrium stabilized zirconium oxide. Yttrium Stabilized Zirconia (Y-TZP) is the strongest ceramic material we offer. Y-TZP is a purely tetragonal phase, fine grain material.
Chemical Composition:
Composition | ZrO2 | Y2O3 | Other |
Content % | 94.8±0.2 | 5.1±0.1 | 0.1% |
Physical Properties:
Specific Gravity g/cm3 | Bulk Density g/cm3 | Hardness Hv | Fracture Toughness MPam1-2 | Crushing Load KN (Φ2.0mm) | Grain size um | Wear loss (%) | Sphericity (%) |
≥6.02 | ≥ 3.70 | ≥1250 | 9 | ≥20 | ≤0.5 | ≤0.08 | ≥98 |
Ball Sizes:
Size (mm) | Size (mm) | Size (mm) | Size (mm) | Size (mm) |
Φ0.08-0.12 | Φ0.12-0.18 | Φ0.18-0.22 | Φ0.22-0.28 | Φ0.28-0.35 |
Φ0.3-0.4 | Φ0.4-0.6 | Φ0.6-0.8 | Φ0.8-1.0 | Φ1.0-1.2 |
Φ1.2-1.4 | Φ1.4-1.6 | Φ1.6-1.8 | Φ1.8-2.0 | 2.0-2.2 |
Φ2.2-2.4 | Φ2.4-2.6 | Φ2.6-2.8 | Φ2.8-3.0 | Φ3.0-3.2 |
Φ3.2-3.5 | Φ4 | Φ5 | Φ6 | Φ7 |
Φ8 | Φ10 | Φ12 | Φ15 | Φ17 |
Φ20 | Φ25 | Φ30 | Φ40 | Φ50 |
Applications:
It is widely used for grinding, dispersing and polishing as following: inkjets inks, electronic slurries, raw material of battery, screen printing inks, coating, painting, pigment, ceramic and cosmetic, jewelry and other nanoparticles products.
Production Details:
Display Cabinet:
Main advantage
2.SGS, ROHS certificate,Strict quality control system ISO 9001.
3.Professional,Sincerity,Concentration,Honesty,Constant striving for improvement,Mutual Glory.
4.High Quality raw material imported from Australian.
5. Quick-delivery, safe packing
Features:
A. Long lifespan: 30 times longer life than glass beads, 6 times than zirconium silicate beads.
B.High efficiency: around 6 times higher than glass beads; 2 times than zirconium silicate beads.
C. Excellent wear resistance and fracture toughness is especially suited for high-solid-phase high viscosity, high hardness of thepaste for grinding and dispersing of pure; good match at the same
time high input energy and the high shear machine sanding.
FAQ:
| What is used to grind ceramic? | Metal-bonded diamond wheels must be used for grinding ceramics. They have a significantly longer service life than other grinding wheels, which wear out very quickly due to the high glass hardness of the ceramic. Please come in and have a look at our best sellers. |
| What type of material is best for grinding operations? | Workpiece materials Cast Iron and mild steel have very good characteristics for cylindrical grinding. Stainless steel is very difficult to grind due to its toughness and ability to work harden, but can be worked with the right grade of grinding wheels.We know the best offer will be accepted. Please contact us here! |
| Why is ceramic more expensive than steel? | Because they are made from clay and quartz, ceramic cookware is expensive as compared to stainless steel cookware. However, since they are expensive, their high quality makes them totally worth it.We have an exclusive offer for our members. |
