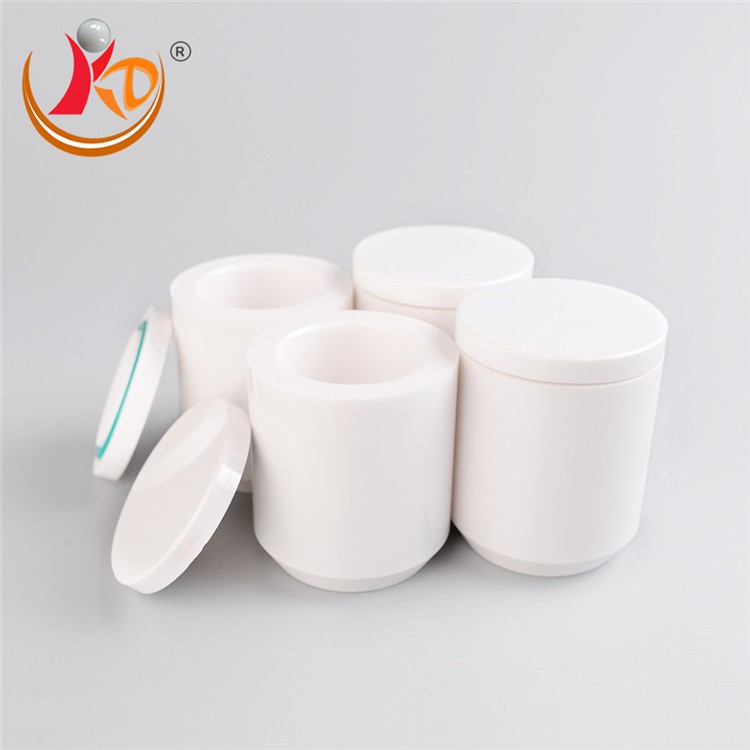

Zirconia Jar Planetary Ball Mill

Zirconia material has advantages of high hardness, high strength, high tenacity, high wear resistance and good corrosion resistance which is widely applied in fields of ceramics, fire proofing material, machinery, electronic, photics, Aeronautics and astronautics, biology and chemicals and etc.

Product Details

Product Introduction:

Zirconia Jar Planetary Ball Mill,Zirconia material has advantages of high hardness, high strength, high tenacity, high wear resistance and good corrosion resistance which is widely applied in fields of ceramics, fire proofing material, machinery, electronic, photics, Aeronautics and astronautics, biology and chemicals and etc. Zirconia mill jar is particularly suitable for vertical stirring mill, horizontal rolling mill, vibration mill, and various high-wire-speed sanding stick pins, etc.

Specification:

Physical Parameters

Item	Testing condition	Unit	Zirconia
Bulk density		g/cm³	≥6
Flexural Strength		N/m²×103	11
Coefficient of linear expansion	20~800°C	×10-6/°C	9.5
Bulk density resistance	100°C	Ω·Cm	>1012
Bending strength		Mpa	950
Thermal conductivity	20°C	W/m·k	3
Breaking tenacity		Mpa·m1/2	6-8
Highest temperature resistance		°C	2300
Finish			Near Mirror polished
Wear-resistance property	Excellent

Specification Parameters

Volume of Jar	Inner Diameter (mm)	External Diameter (mm)	Inner Depth (mm)	Height of without lid (mm)	Total Height (mm)	Weight (g)
50ml	38	55	52	60	67	610
100ml	50	65	58	66	75	835
250ml	74	92	70	78	88	1760
500ml	84	100	100	108	118	2300
1L	108	128	128	138	150	4780
2L	138	158	140	150	162	6750
3L	138	158	198	208	220	8400
Remarks: 1. Size deviation within ±2mm; 2. Weight deviation within ±0.2KG; 3. Customized jar is acceptable.
