Yttrium Ceramic YSZ Zirconia Grinding Jar
Product Details
Product Introduction:

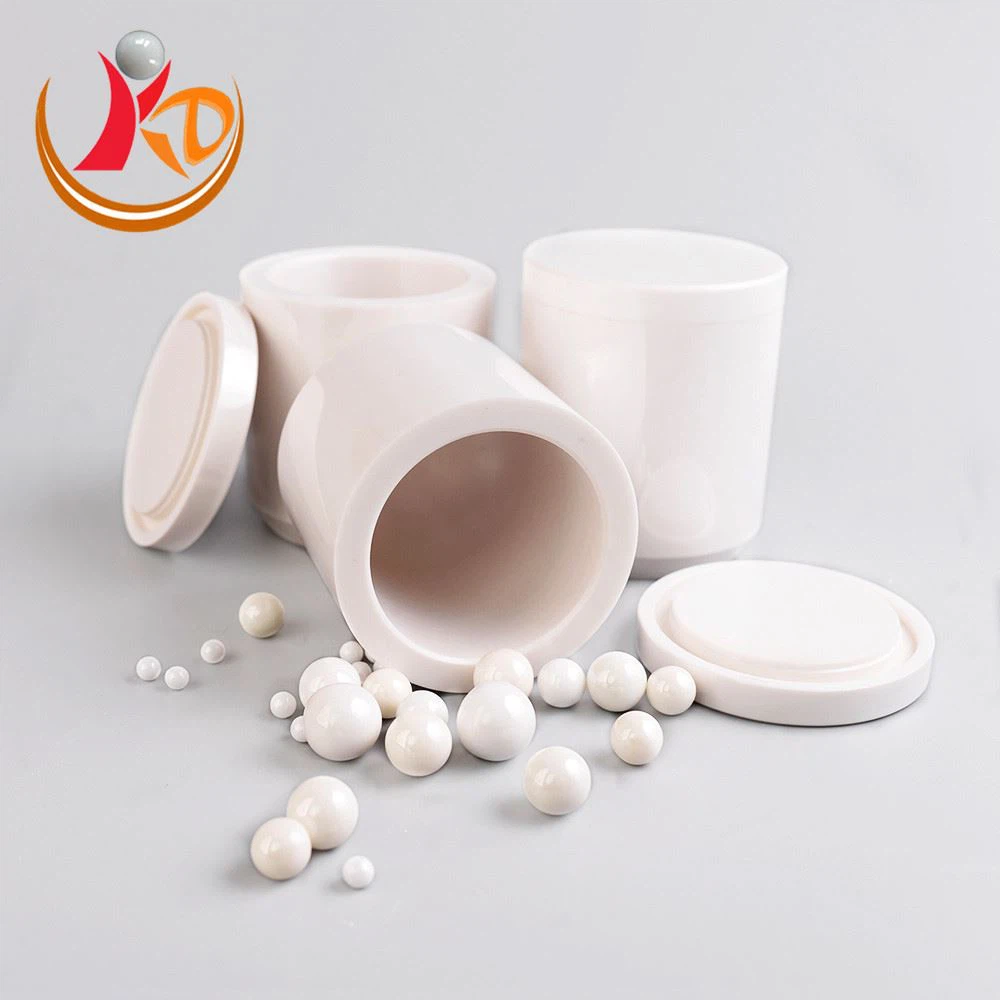

YSZ (Yttria Stabilized Zirconia) grinding jar and bead have high density, high mechanical strength, high chemical stability, low thermal expansion factor and high abrasion resistance. It is the most durable and reliable media for ball milling and attrition milling of ceramic material. It also provides high grinding efficiency, low noise and prolonged life to materials with no contamination.

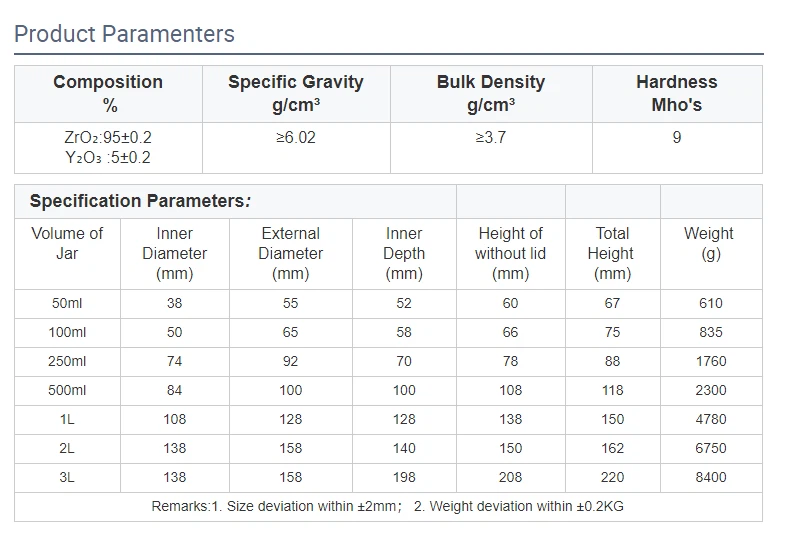

Physical Parameters:
General specifications | |
Main Materials | Zirconium Oxide -ZrO2 |
Chemical composition | |
Element | Share % |
ZrO2 | ≥94.5 |
Y2O3 | 5.15 |
TiO2 | 0.0018 |
P | < 0.035 |
SiO2 | 0.007 |
Fe2O3 | 0.0009 |
S | < 0.03 |
N | < 0.25 |
Volume of Jar | Inner Diameter | External Diameter | Inner Depth (mm) | Height of without lid (mm) | Total Height | Weight (g) |
50ml | 38 | 55 | 52 | 60 | 67 | 610 |
100ml | 50 | 65 | 58 | 66 | 75 | 835 |
250ml | 74 | 92 | 70 | 78 | 88 | 1760 |
500ml | 84 | 100 | 100 | 108 | 118 | 2300 |
1L | 108 | 128 | 128 | 138 | 150 | 4780 |
2L | 138 | 158 | 140 | 150 | 162 | 6750 |
3L | 138 | 158 | 198 | 208 | 220 | 8400 |
Remarks: 1. Size deviation within ±2mm; 2. Weight deviation within ±0.2KG; 3. Customized jar is acceptable. | ||||||
Package Service:
Yttria stabilized zirconia jars are carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
