Ceramic Canister Set
Product Details
Product Introduction:

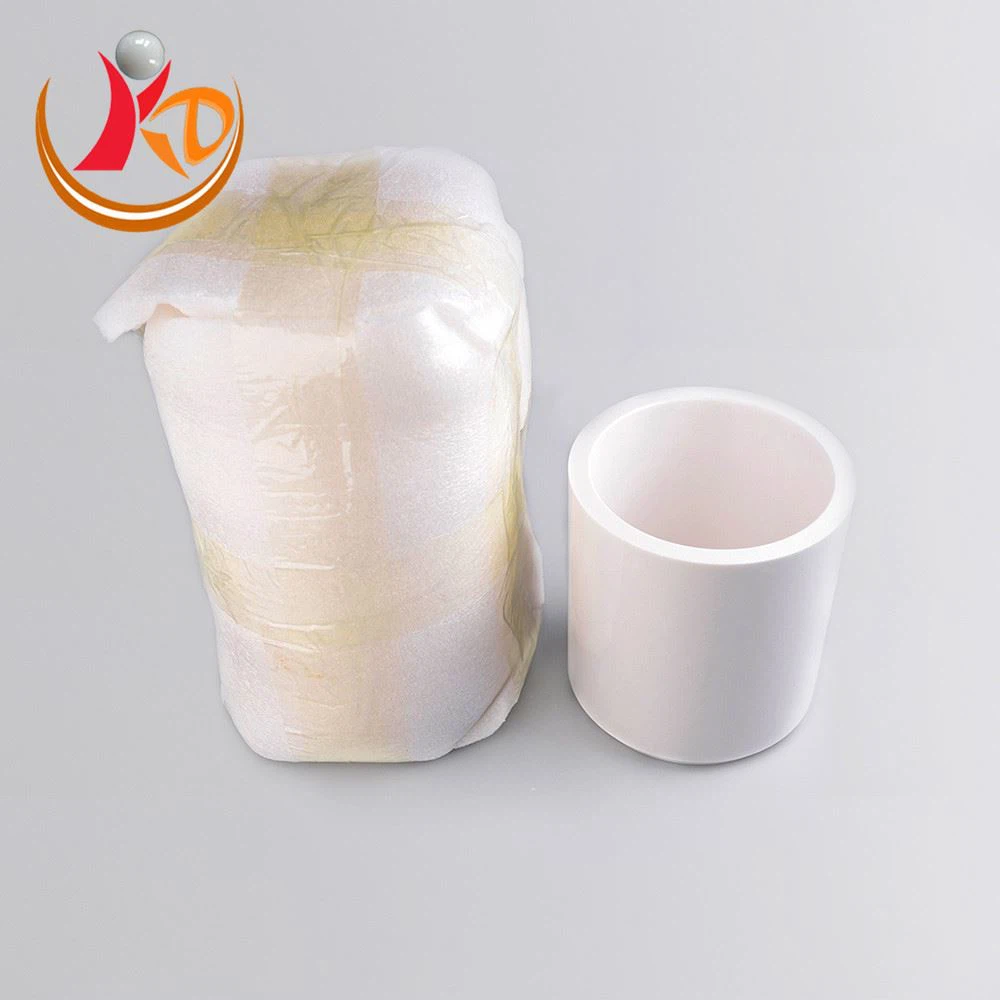

Highly polished YSZ (Yttrium stabilized ZrO2) zirconium oxide jars, 60 times the hardness of regular steel, highly wear-resistant and resistant to acid and solvents. The grinding/mill jars are widely applied in the field of paint, ink, geology, metallurgy, electronics, construction material, ceramics, chemical engineering, medicine, environmental protection and so on.
Physical Parameters:
General specifications | |
Main Materials | Zirconium Oxide -ZrO2 |
Chemical composition | |
Element | Share % |
ZrO2 | ≥94.5 |
Y2O3 | 5.15 |
TiO2 | 0.0018 |
P | < 0.035 |
SiO2 | 0.007 |
Fe2O3 | 0.0009 |
S | < 0.03 |
N | < 0.25 |
Volume of Jar | Inner Diameter | External Diameter | Inner Depth (mm) | Height of without lid (mm) | Total Height | Weight (g) |
50ml | 38 | 55 | 52 | 60 | 67 | 610 |
100ml | 50 | 65 | 58 | 66 | 75 | 835 |
250ml | 74 | 92 | 70 | 78 | 88 | 1760 |
500ml | 84 | 100 | 100 | 108 | 118 | 2300 |
1L | 108 | 128 | 128 | 138 | 150 | 4780 |
2L | 138 | 158 | 140 | 150 | 162 | 6750 |
3L | 138 | 158 | 198 | 208 | 220 | 8400 |
Remarks: 1. Size deviation within ±2mm; 2. Weight deviation within ±0.2KG; 3. Customized jar is acceptable. | ||||||
