Agate Grinding Jar
Product Details

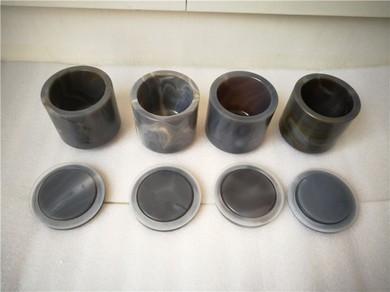

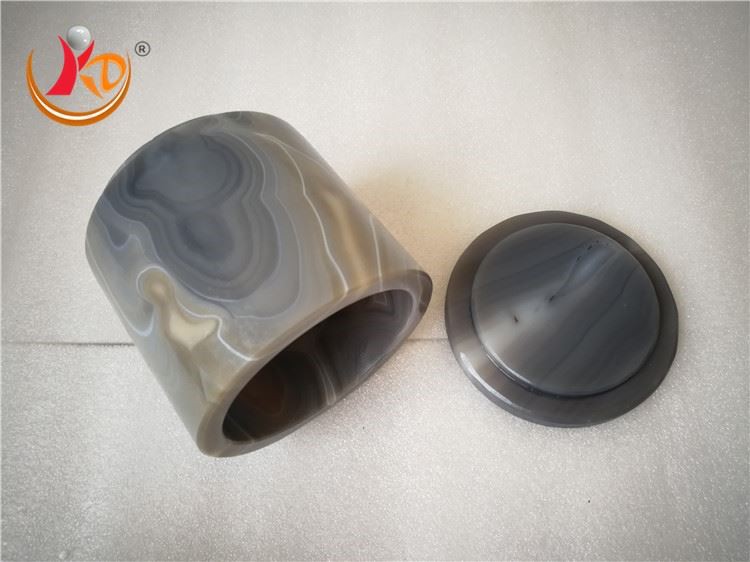

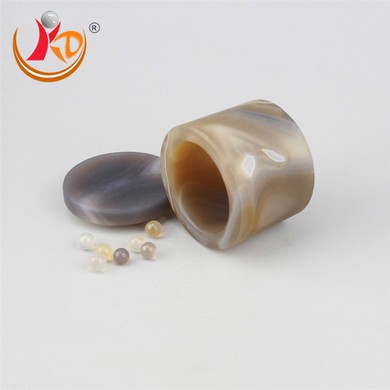

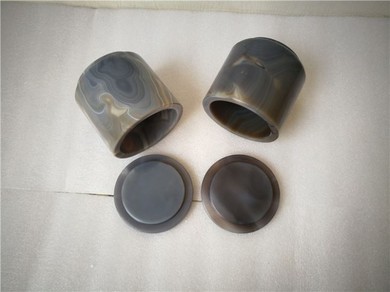

Agate Grinding Jar
Product Introduction:
KINGDA High purity natural Brazilian agate grinding jars, highly wear-resistant and resistant to acids (except HF), with advantages of no impurities, no cracks, glossy, high-quality, strong vibration resistance. After experiments, it shows that the item have no cracks, no bump after high-speed vibration abrasion.
Specification:
Material: | Natural agate |
Density: | 2.65 g/cm3 |
Hardness | 7.2 -7.5 Mohs' |
Volume: | 50 - 2000 mL |
Colour: | Natural agate color |
Suitable for: | Soft to medium-hard samples |
Attachments: | Lid, silicon sealing gasket |
Applications: | Grinding / mixing / ball milling |
Comments: | • Contamination free for samples • Do not heat • Can be customized for various ball milling equipments, such as Retsch series, ect |
Features:
| 1. | No impurities, no crack, high gloss, resistance to strong shaking force. Experiment has proved that after high speed vibration and wearing, agate jar has no crack or no bump phenomenon. |
| 2. | Kingda agate mill jar is made of Brazil and Uruguay agate nature raw material with bright color and high hardness. |
| 3. | With characteristics of high temperature resistance, strong acid resistance and alkali resistance. Agate mill jar can be used in the acid grinding media. |
Specification Parameters:
Volume of Jar | Outside Diameter (mm) | Inner Diameter (mm) | Inner Depth (mm) | Height of without lid (mm) | Total Height (mm) |
50ml | 65 | 45 | 37 | 49 | 58 |
100ml | 73 | 50 | 52 | 62 | 70 |
150ml | 90 | 62 | 55 | 70 | 80 |
250ml | 93 | 73 | 70 | 80 | 90 |
400ml | 105 | 82 | 80 | 93 | 103 |
500ml | 104 | 86 | 90 | 100 | 108 |
1L | 133 | 107 | 114 | 126 | 140 |
1.5L | 167 | 137 | 103 | 118 | 133 |
2L | 156 | 130 | 155 | 170 | 188 |

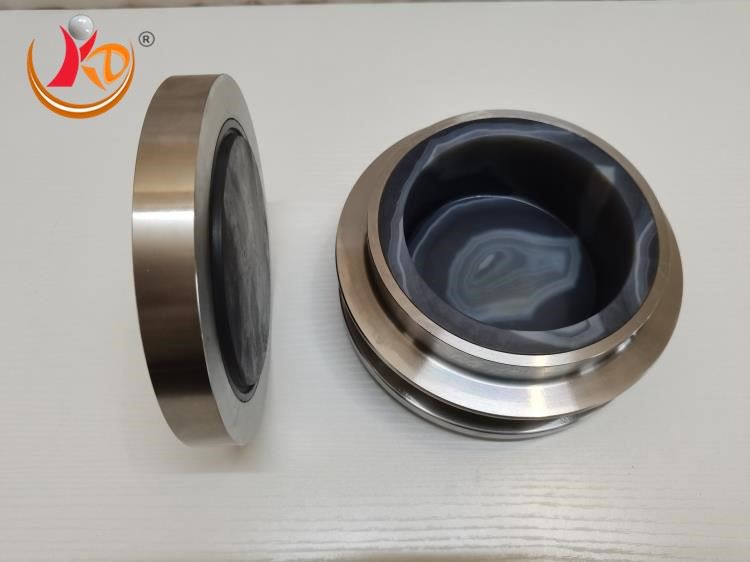

Remarks: 1. Size deviation within ±2mm; 2. Agate covered 1mm stainless steel outside as per request. | |||||
Production Details:

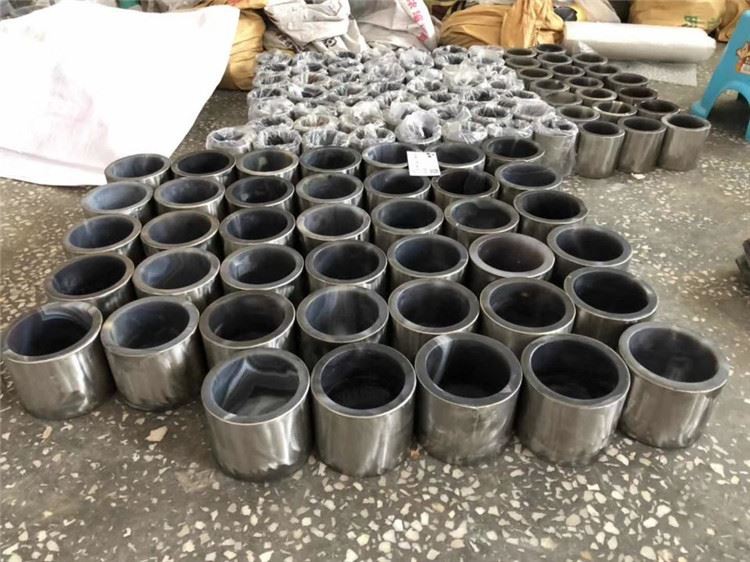

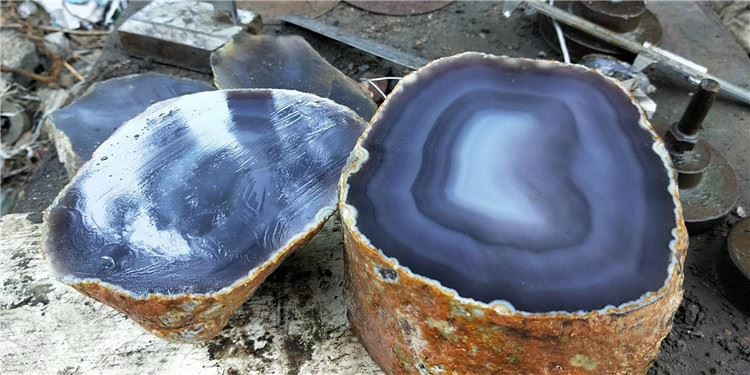

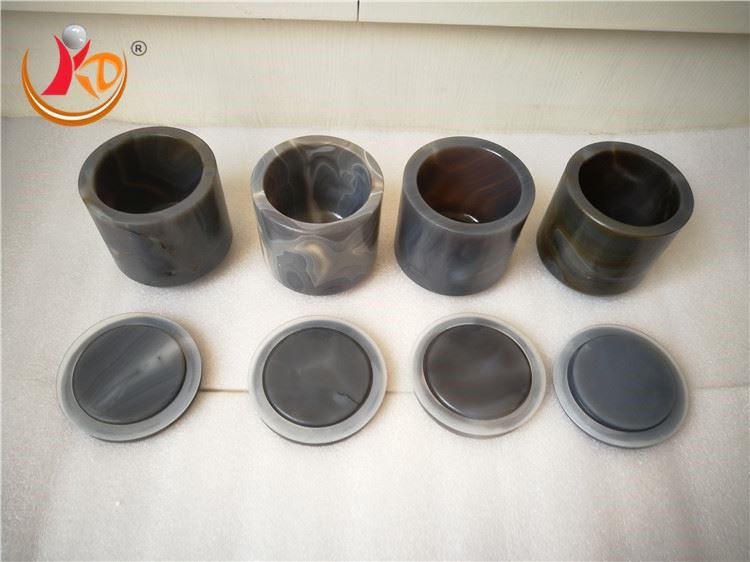

Workshop and imported Brazil Agate Raw Material:

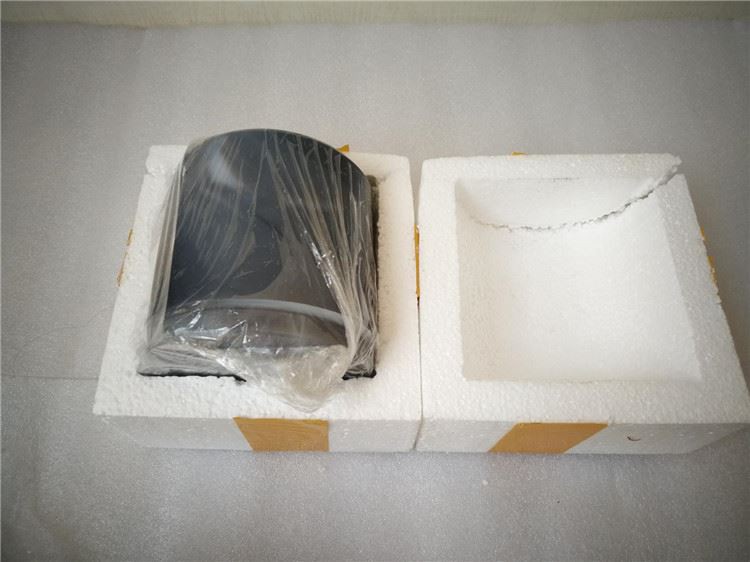

Package:
Application and Precautions for use:
① Special care should be taken during use. Do not grind materials with excessive hardness and do not contact with hydrofluoric acid.
② During grinding operation, the mortar should be placed on an object that is not easy to slide, and the pestle should be kept vertical. Large solids can only be crushed, not a pestle crush it, otherwise it will damage the mortar, pestle or spill solids. Explosive substances can only be crushed lightly, not ground. Grinding is corrosive to the skin.For substances, cover the mortar with thick paper or plastic, then make a hole in the center, insert the pestle, and grind. The mortar is filled with solid which amount shall not exceed 1/3 of its volume.
③Do not heat the mortar, and do not put it in an electric oven to dry it.
④When washing the mortar, it should be rinsed with water first, and the acid-resistant mortar can be diluted with hydrochloric acid washing. If the mortar is difficult to wash, put a small amount of salt into the mortar,
grind it, and then wash it.

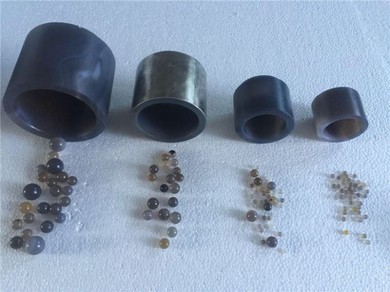

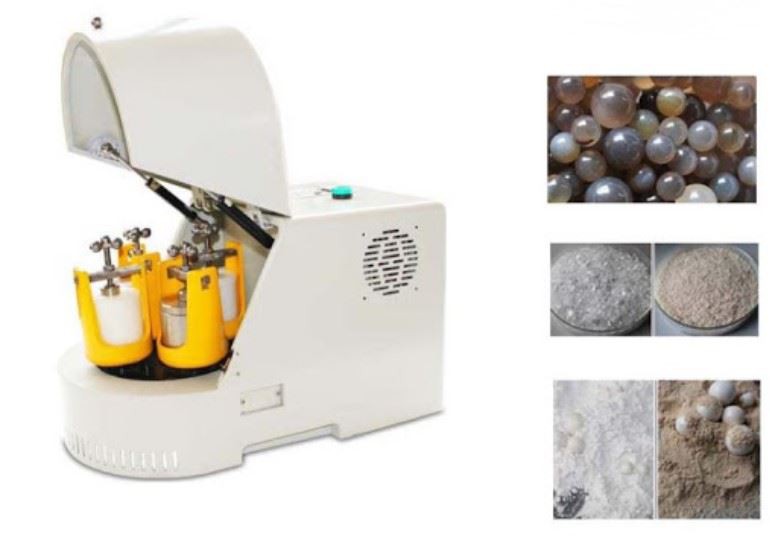

The use of agate ball mill jar and grinding ball:
The agate grinding kit has a wide range of uses and can be used for grinding various types of samples. Kingda Ceramic agate grinding kit adopts scientific processing technology, which can exert the excellent characteristics of raw materials, and can be used for grinding the following sample materials:
Soil, phosphor, LED phosphor, electronic powder, ceramic powder, lithium battery cathode material, PTC, NTC thermistor, capacitor, electronic paste, insulating material, magnetic material, pigment, ink (ink), paint, medicine, Food, piezoelectric ceramics, ceramic capacitors, precision ceramics, ceramic powder, lithium battery cathode materials, PTC, NTC thermistors, etc.

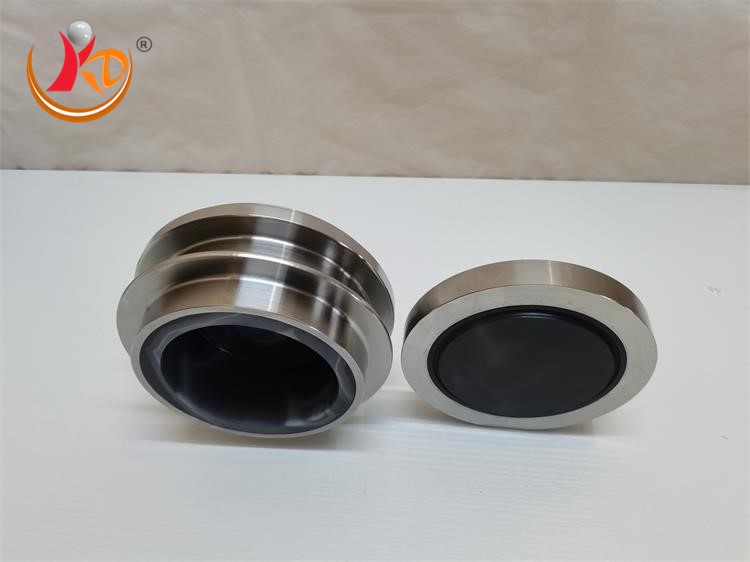

Agate ball milling jars and grinding balls have many advantages, reasonable price and wide applicability, but they are more afraid of falling. In this case, the agate ball milling tank produced by Kingda Ceramic has a stainless steel sheath to protect the tank body and avoid accidental damage.

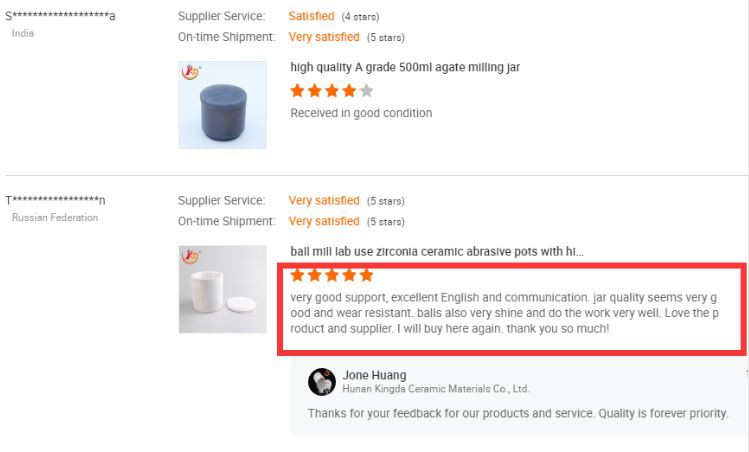

Comments from clients:
Which agate is best?
It's called the Plentitude
Stone. It is considered to be the most valuable form of agate. Dendritic
agate is associated with the ancient dryads of Greece.
