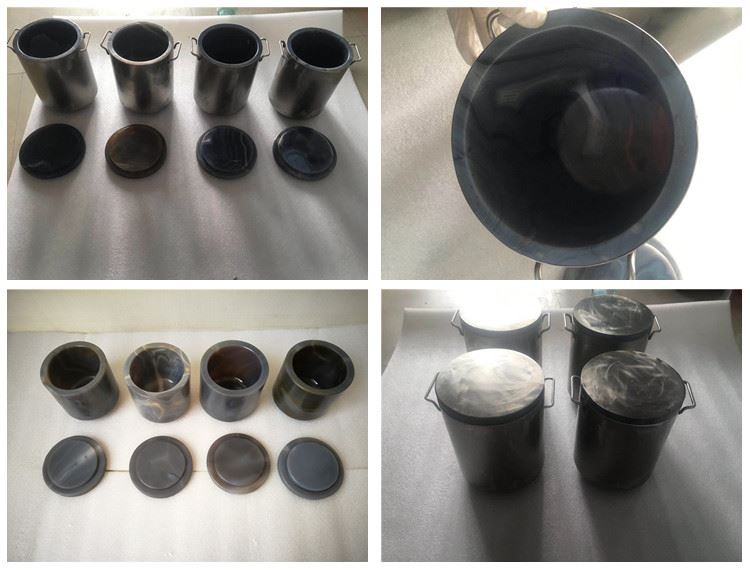

Agate Mill Jar
Product Details
Product Introduction:
High purity natural Brazilian agate (99.92% SiO2) ball mill jars. Resistant to acids (except HF) and solvent, these jars are used whenever small quantity of samples need to be grinded without contamination.
Specification:
|
Parameter of Agate Ball Mill Jar |
||||||
|
Volume of Jar |
Outside Diameter (mm) |
Inner Diameter (mm) |
Inner Depth (mm) |
Height of Not Containing Cover (mm) |
Total Height (mm) |
Weight (KG) |
|
50ml |
65 |
45 |
37 |
49 |
58 |
0.36 |
|
100ml |
75 |
50 |
52 |
62 |
70 |
0.56 |
|
150ml |
90 |
62 |
55 |
70 |
80 |
0.93 |
|
250ml |
93 |
73 |
70 |
80 |
90 |
0.84 |
|
300ml |
102 |
79 |
71 |
81 |
95 |
1.18 |
|
400ml |
106 |
80 |
80 |
93 |
103 |
1.38 |
|
500ml |
104 |
86 |
90 |
100 |
110 |
1.31 |
|
1L |
133 |
107 |
114 |
126 |
140 |
2.54 |
|
2L |
156 |
130 |
155 |
170 |
185 |
4.43 |
|
Remarks: 1. Size deviation within ±2mm; 2. Packaged 1mm stainless steel outside as request; 3. The above weight is for A grade agate jars, deviation within ±0.2Kg. |
||||||
Features:
|
1. |
No impurities, no crack, high gloss, resistance to strong shaking force. Experiment has proved that after high speed vibration and wearing, agate jar has no crack or no bump phenomenon. |
|
2. |
KINGDA agate mill jar is made of Brazil and Uruguay agate nature raw material with bright color and high hardness. |
|
3. |
With characteristics of high temperature resistance, strong acid resistance and alkali resistance. Agate mill jar can be used in the acid grinding media. |
|
4. |
Minor cracks on the walls of the jar is normal and occurs naturally. |
