Zirconium Small Pot Mill Jar

Name: Zirconium Small Pot Mill Jar
Brand: Kingda
SKU: 204812490

Products Description zirconium small pot mill jar Zirconium small pot mill jar, 60 times the hardness of regular steel, highly wear-resistant and resistant to acid and solvents. The grinding jars are extensively applied on in the fields of Paint, Ink,Coating, Geology, Metallurgy, Electronics,...

Product Details

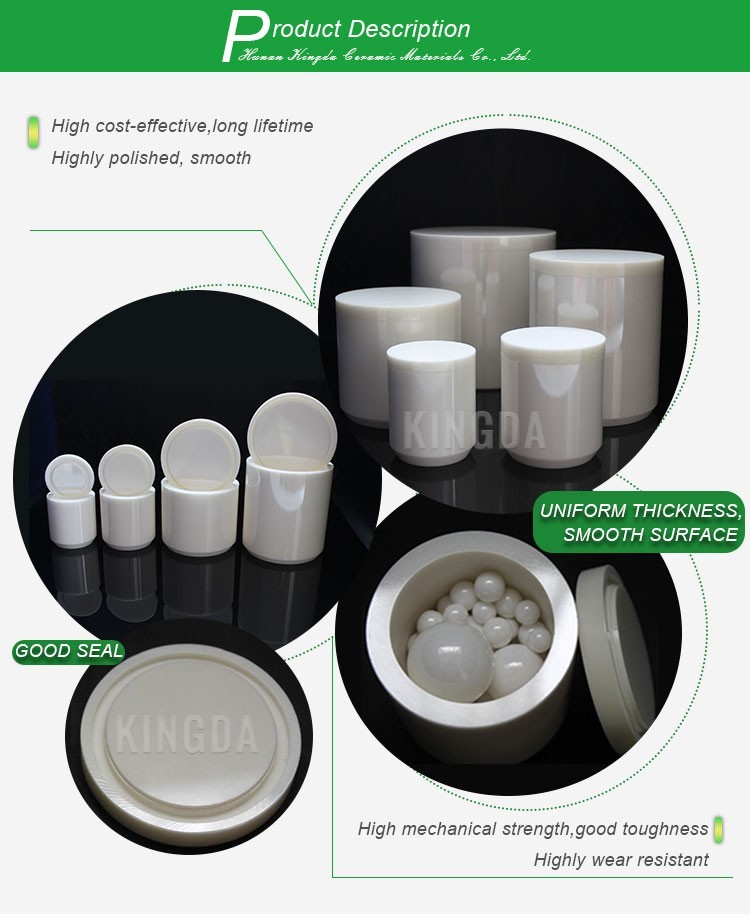

Products Description

zirconium small pot mill jar

Zirconium small pot mill jar, 60 times the hardness of regular steel, highly wear-resistant and resistant to acid and solvents. The grinding jars are extensively applied on in the fields of Paint, Ink,Coating, Geology, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry, Medicine, Environmental Protection and so on. Each jar set includes grinding jar, jar lid, rubber sealing gasket and different sizes of mixed zirconium oxide grinding balls.

Composition

(%)

Specific Gravity

(G/CM³⁾

Bulk Density

(Kg/L)

Capacity

(ML)

ZrO₂: 95± 0.2

Y₂O₃: 5± 0.2

≥ 60.2

≥3.7

50;100;250;

500;1000;2000;3000

Dimesion (offer OEM & ODM Service)

Jar Volume	OD (mm)	ID (mm)	Total Height (mm)
50ml	55	38	67
100ml	65	50	75
250ml	92	74	88
500ml	100	84	118
1000ml	128	108	150
1.5L	132	112	175
2.0L	158	138	162
3.0L	158	138	220

Note: Jar size of each patch will control tolerance ±2mm. One set includes: jar + lid + sealing gasket.

Choice of Grinding Jars & Grinding Balls

In order to prevent excessive abrasion, the hardness of the grinding jars used and of the grinding balls must be higher than that of the material used. Normally, grinding jars and grinding balls of the same material should be chosen.

Features

1. High specific gravity, high efficiency
2. Highly wear resistant to acid and solvents
3. High cost-effective, low wear and long lifetime
4. Highly polished, smooth, easy to clean, low abrasion to the equipment
5. High mechanical strength, good toughness, impact resistance, no broken beads
6. Mainly used for lab planetary ball mill machines

Packaging & Shipping

Application fileds

product-722-345

Related Products

Company Information

Our service

FAQ

1.What's product your company supply?

A.We can supply yttrium stab.zirconia bead,cerium stab.zirconia bead,zirconia silicate bead,high alumina ball, agate ball, ball mill grinding jar, tungsten carbide ball, zirconium powder,ceramic structual elements etc.

2. Q: What is your MOQ?
A: 1KG. We accept smaller quantity but price is higher.

3. Q: Can you provide free samples?
A: Yes, the buyers just afford shipping cost .

4. Q: What is your production time for bulk order?
A: 7~30 days, according to order quantity.

5. Q: What is your normal package?
A: Woven bag or barrel ,drum,carton box and pallet.

6. Q: What is your payment term?
A: T/T 30%-70% Deposit, balance against copy of B/L.

L/C at sight,Western Union, paypal,Visa,etc
