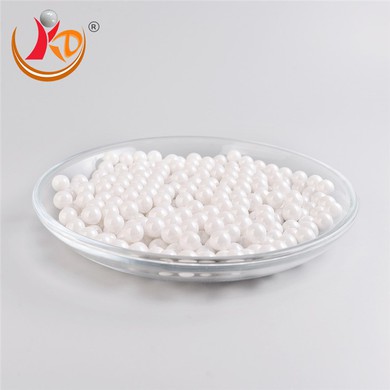

0.1-50mm Zro2 Yttrium Zirconia Ceramic Beeds
Product Details
Product Introduction:
With the extremely low wear loss, high impact resistance, Kingda zirconia ball is used as high grade grinding media for super fine grinding, it can be used in the fast ball mill, jet mill in non-metallic material ultra-fine grinding.
Specification:
Density | g/cm3 | 6.00-6.06 |
Hardness | HV, Kgf/mm2 | ＞1250 |
Mohs | 9 | |
Packing density | g/cm3 | 3.6-3.8 |
Water Absorption | % | 0 |
Bending Strength | MPa | 1200 |
Fracture Toughness | MPa.m 1/2 | 7 |
Size Available | mm | 0.1-0.8 (any size breakdown) |
Chemical composition | ||
ZrO2 | % | >94.5 |
Y2O3+others | % | >5 |
Ball Sizes:
Size (mm) | Size (mm) | Size (mm) | Size (mm) | Size (mm) |
Φ0.08-0.12 | Φ0.12-0.18 | Φ0.18-0.22 | Φ0.22-0.28 | Φ0.28-0.35 |
Φ0.3-0.4 | Φ0.4-0.6 | Φ0.6-0.8 | Φ0.8-1.0 | Φ1.0-1.2 |
Φ1.2-1.4 | Φ1.4-1.6 | Φ1.6-1.8 | Φ1.8-2.0 | 2.0-2.2 |
Φ2.2-2.4 | Φ2.4-2.6 | Φ2.6-2.8 | Φ2.8-3.0 | Φ3.0-3.2 |
Φ3.2-3.5 | Φ4 | Φ5 | Φ6 | Φ7 |
Φ8 | Φ10 | Φ12 | Φ15 | Φ17 |
Φ20. | Φ25 | Φ30 | Φ40 | Φ50 |
Advantages:
1. Compared with the traditional other ceramic grinding media, the YTZ zirconia ball has high density, hardness, which provide it higher milling performance than the traditional grinding medium.
2. The highest operating time is achievable.
3. High-wearing zirconia grinding medium can protect materials from pollution and guard against chemical corrosion to shorten the useful time of the grinding medium.
Applications:
Colour and Paint Industry: - grinding and dispersion of coating and paint systems
Ceramic Industry - grinding and processing of electric ceramics
Plant Protection: - dispersion of fungicides,herbicides,insecticides
Cosmetics: - grinding of pigments and solids for lipsticks, creams
Pharmaceutics: - nano grinding for the production of active substances.
Battery raw materials: - ultra fine grinding and dispersion of battery raw materials
for Cathode and Anode materials
Production Details:
Main QC Equipment:
